Overview

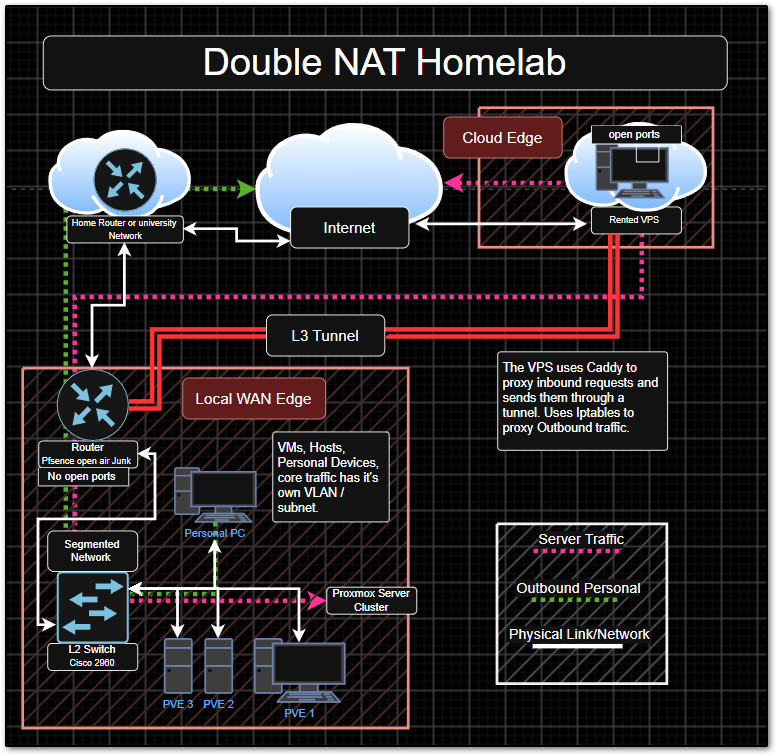

Homelab overview
Device-specific detail lives in its own page.
Core Services & Deployment
| Service | Environment | Function | Status / Notes | Location |
|---|---|---|---|---|
| Webserver | Docker | Website hosting | Github | |
| Pterodactyl | Docker | Game Server Management and node | Open port configuration proxied with caddy and Authentik | Game Server VM |
| Caddy | Docker | Reverse Proxy & SSL | Primary ingress router | VPS |
| Authentik | Docker | Authentication | Used for auth of public facing services | Auth Server VM |
Core Public Routing
| Subdomain | Internal Destination | Port | Purpose / Service |
|---|---|---|---|
auth.nickloves.me |
192.168.20.10 (via WireGuard) |
9000 |
Authentik Identity Provider |
proxmox.nickloves.me |
192.168.20.3 (via WireGuard) |
8006 |
Proxmox VE |
vault.nickloves.me |
192.168.20.10 (via WireGuard) |
80 |
Vaultwarden Password Vault |
Other Notes
MTU
MTU likes to break stuff, watch out for it. WireGuard’s overhead shrinks the effective MTU of everything riding through the tunnel - see the Router page for the specific tunnel MTU setting.
