Documentation

Main Documentation - Second pass

Status: Active / In Development
Primary Hypervisor: Proxmox
Primary Network Gateway: Netgate Router
Core Switch: Cisco Managed Switch

Core Services & Deployment

Service Environment Function Status / Notes
ARR Stack Docker Media Management local IPs only on server VLAN
Jellyfin Docker Media Streaming Open port configuration proxied with caddy
Webserver Docker Website hosting Proxied via Caddy
Pterodactyl Docker Game Server Management and node Open port for game panel is local only
Caddy Docker (VPS) Reverse Proxy & SSL Primary ingress router
Authentik Docker (VPS) Authentication Used for auth of public facing services

Switch Port Allocation & VLANs

The network is segmented to isolate personal devices, management interfaces, and publicly accessible servers. The switch can only be managed via console cable.

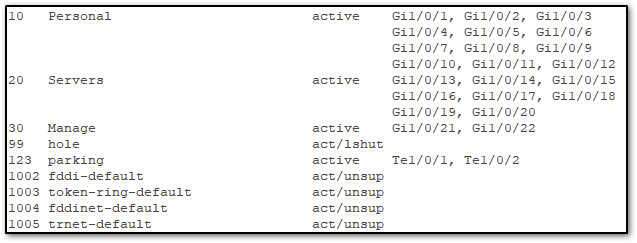

VLAN ID Name Subnet / Gateway Description
10 Personal 192.168.10.0/24 Trusted personal devices.
20 Servers 192.168.20.0/24 Lab servers and exposed services.
30 Management 192.168.30.0/24 Infrastructure management interfaces.
999 Hole (Native) N/A Blackhole VLAN to prevent VLAN hopping.
Port Range Assignment Mode
G1/0/23 Router Uplink Trunk (Allowed: 10, 20, 30)
G1/0/24 Switch Downlink Trunk (Allowed: 10, 20, 30)
G1/0/1 - G1/0/12 VLAN 10 (Personal) Access
G1/0/13 - G1/0/20 VLAN 20 (Servers) Access
G1/0/21 - G1/0/22 VLAN 30 (Management) Access
f0, Tel1/0/1-2 Parking Access

ACL / Firewall

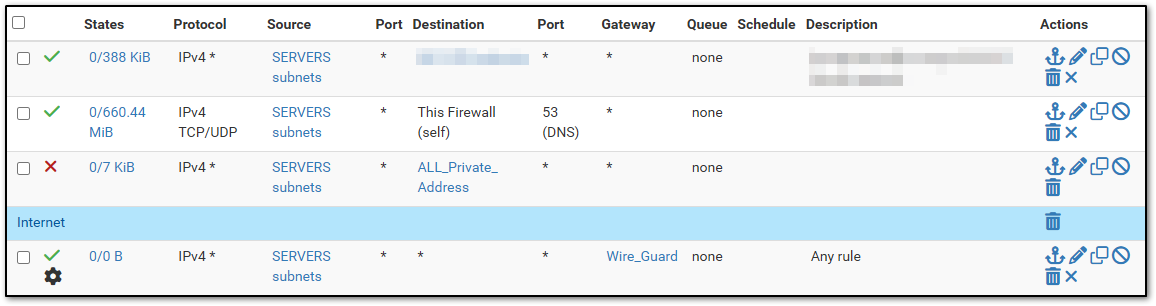

Server Interface:

  1. All server traffic ONLY uses WireGuard tunnel.
  2. All personal traffic uses normal gateway.

WireGuard

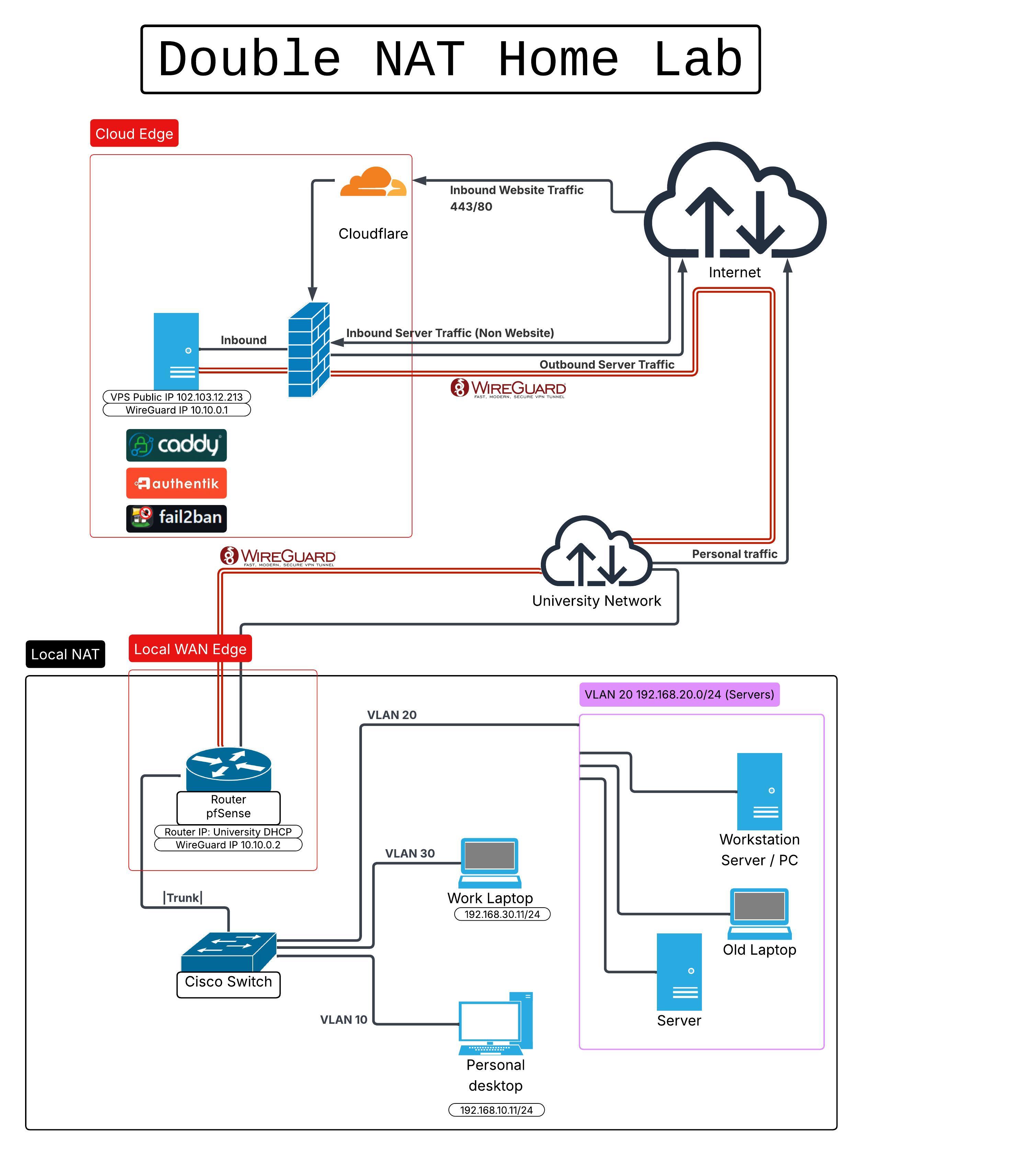

A Virtual Private Server (VPS) is used to expose internal services securely. The VPS server routes traffic through this tunnel.

Configuration Item Value Note
Tunnel Device tun_wg0 Assigned to interface WG_VPN (opt2)
Description WireGuard to VPS The router is a peer
Listen Port 51820- todo, change to random Standard WireGuard port
MTU 1420 (Recommended for WireGuard to avoid fragmentation)
Allowed IPs 10.10.0.1/32, 0.0.0.0/0 Routes traffic for the tunnel and the Internet

Caddy Configuration

This environment utilizes a Virtual Private Server (VPS) as the primary public-facing ingress point. Caddy is deployed on the VPS to handle all external HTTP and HTTPS traffic, managing SSL certificates and routing.

To securely access internal services, the VPS acts as a gateway, connected to the local Proxmox environment via a WireGuard VPN tunnel. Caddy routes traffic either to local containers on the VPS (such as Authentik for single sign-on) or forwards it through the WireGuard tunnel to the internal 192.168.20.x subnets.

Both Caddy and Authentik are configured to communicate via a shared external Docker network named proxy.

Parameter Configuration
Exposed Ports 80 (HTTP), 443 (HTTPS)
Network proxy (External)
Config File /opt/docker/caddy
Subdomain Internal Destination Port Purpose / Service
auth.nickloves.me authentik-server-1 9000 Authentik Identity Provider
proxmox.nickloves.me 192.168.20.3 8006 Proxmox VE (via WireGuard)
post.nickloves.me 192.168.20.5 8080 This Website

Other Notes

Spanning Tree (STP) / BPDU Guard: When the Netgate router reboots, its internal switch briefly acts unmanaged and passes Cisco BPDU packets from the LAN switch out to the WAN. This triggers BPDU Guard and shuts down the port.

Fix: The trunk port connected to the router requires spanning-tree bpdufilter enable to prevent sending STP packets during this window.

VPS Hardening: Unnecessary services have been disabled to harden the public-facing VPS. Automatic unattended upgrades are enabled.
